MOT Special Ladder

Performance Overview
Load Capacity Certification Material Color
120Kgs SGS EN131 Aluminum Sliver

Product Description
• Heavy-duty serrated rungs prevent slipping for safe and sure climbing ( available in D-rung profile)
• Traditional raise from the rear pulley design
• Triple pulley system on the top, middle and bottom sections to co-ordinate with hidden-style circular pull-ring
• Large rubber feet base for long lasting durability
• Split section pulley and Bracket system with locking device to fix at required height
• Raising mechanism uses nylon tongue to protect aluminum from abrasion
• All come with extra pole strap, handle, heavy-duty feet


Specifications Dimensions
MODEL Distance Step Step Hight Fount Base Width Back Base Width Base Depth Approx. Weight kgs.

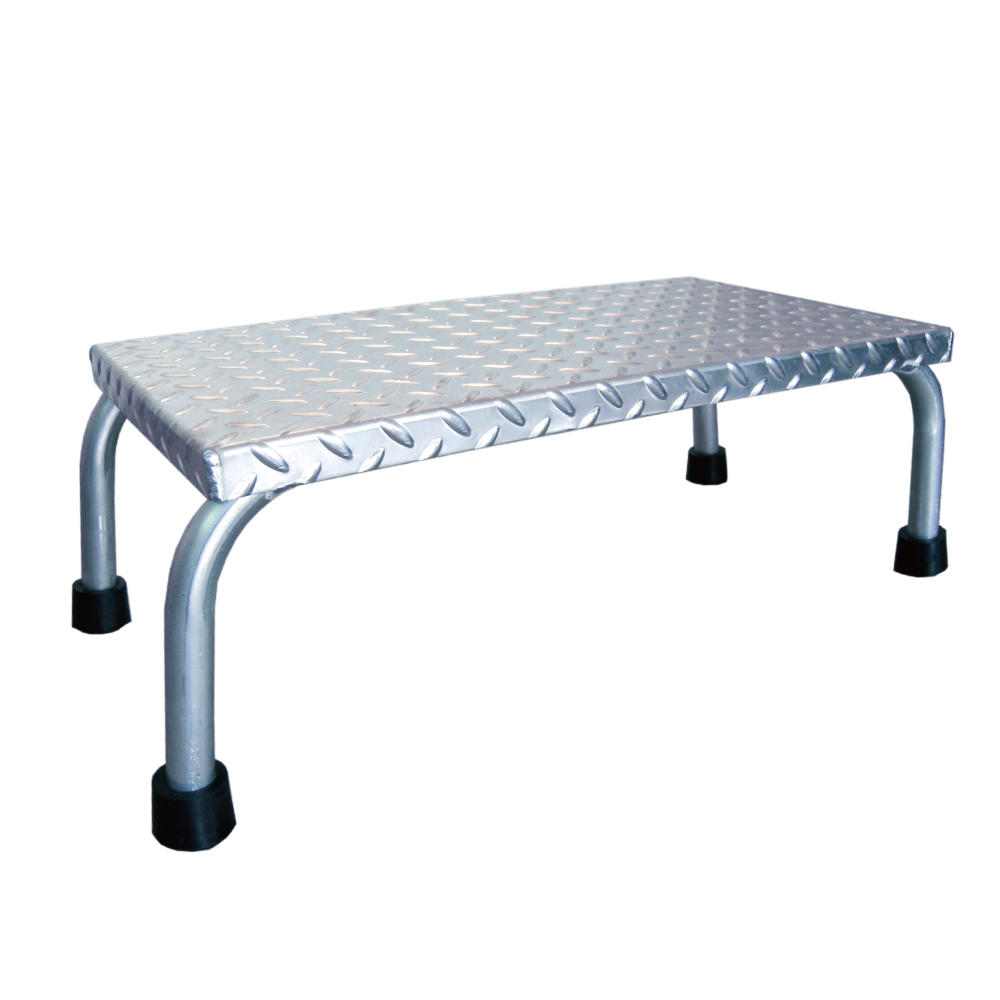

MOT-01 200mm 1 210 565 658 325 2.6

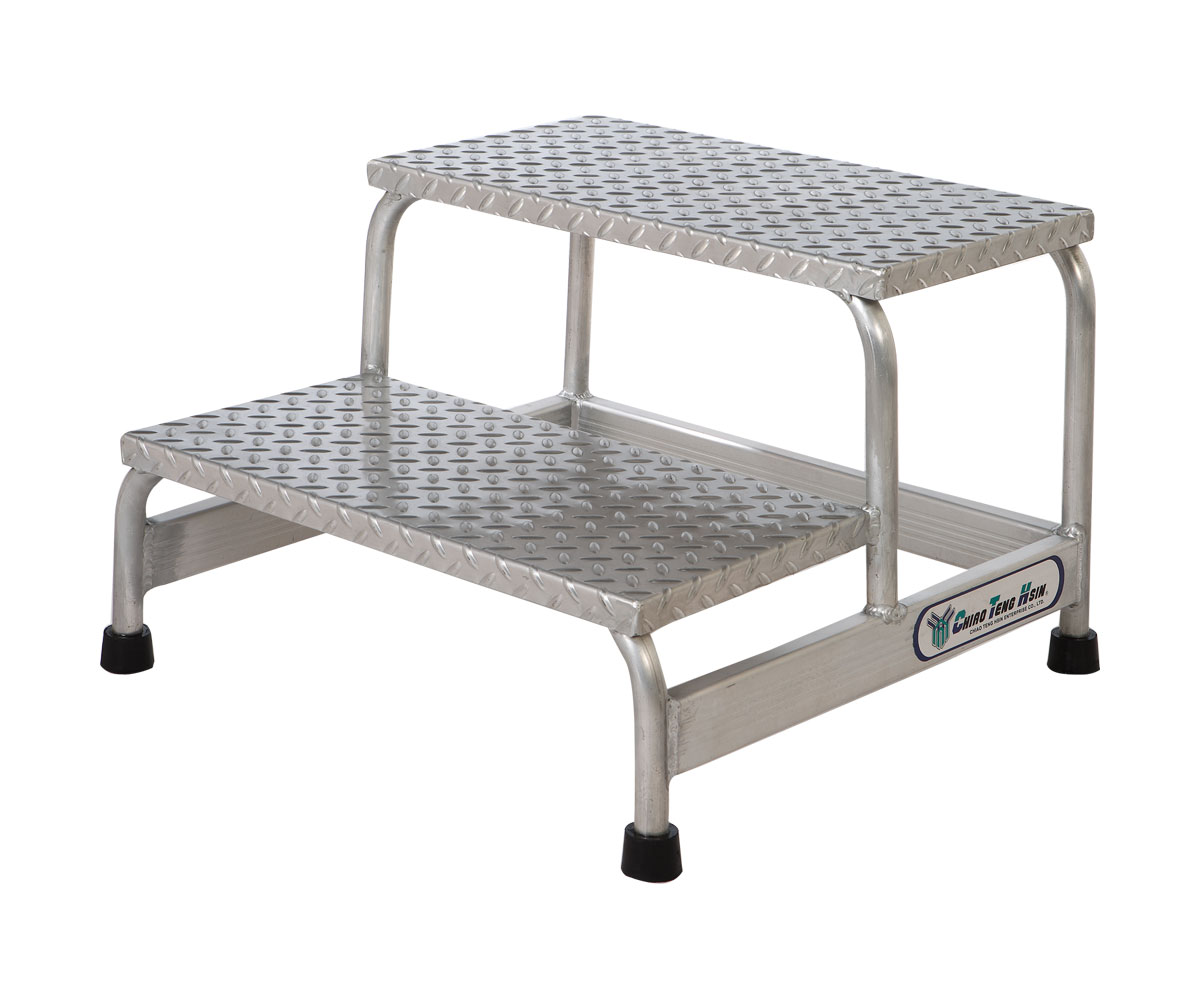

MOT-02 200mm 2 410 565 658 617 5.78

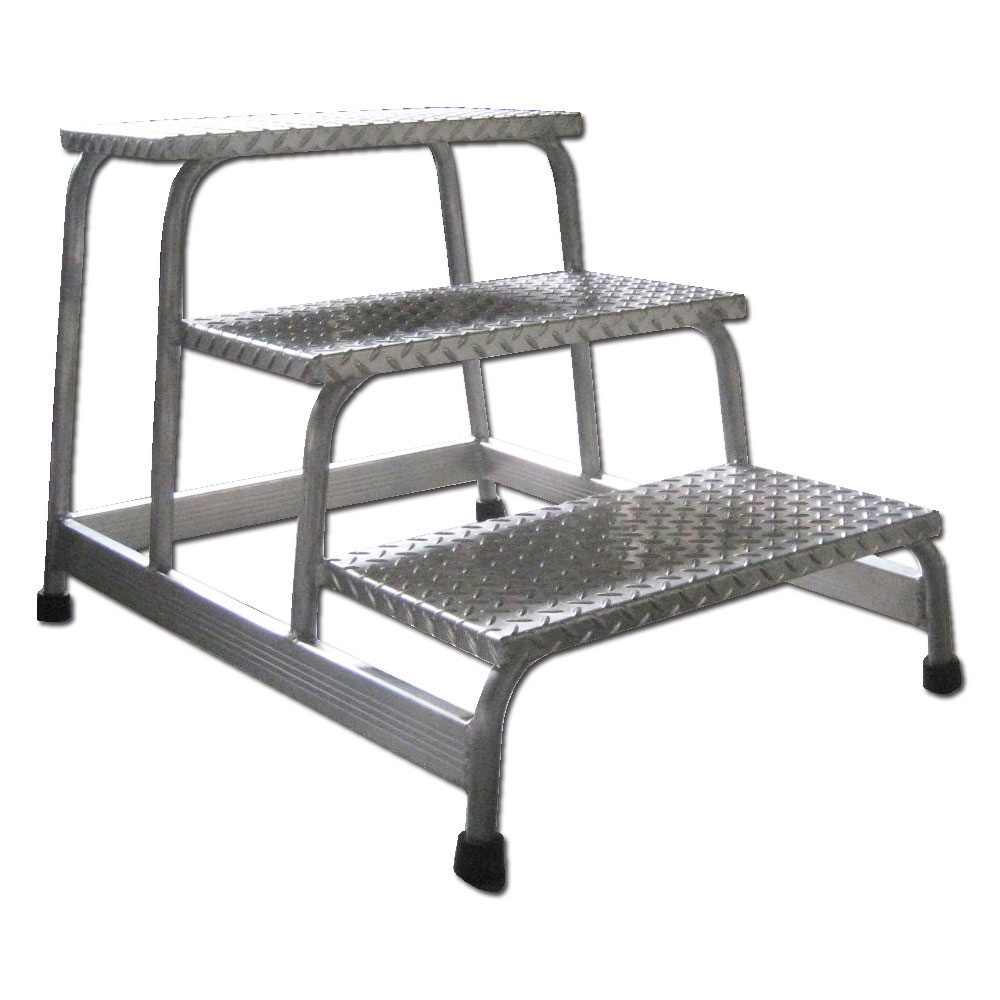

MOT-03 200mm 3 610 565 710 915 8.72
